EDI Viewer - BC UWI Master File Maintenance

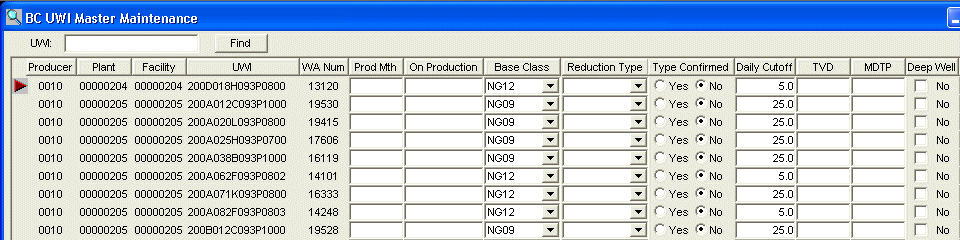

The UWI Master File Maintenance window is used to see all UWI's imported from BC08 invoices and add additional information for:

To find a UWI:
  • enter the full or partial uwi into the UWI at the top of the window and click the Find button. If the UWI is found, the row will be highlited. If the UWI is not found, a message will be displayed.
  • Clicking the Find button again will find the next UWI starting from the row you are on.
  • To start the find from the first row, you must scroll to row 1 and click on row 1 so the red arrow to the left of the row points to row 1.


You cannot add or delete rows here. These are UWI's that are linked to invoices you have imported. Any time you import an invoice with new UWI's, they will automatically show up on this window.

You may see the same UWI on this window more than once. That is because the plant, facility, or WA Number may be different. If this is the case, these are all valid UWI's.




To Sort, click on the headings. To sort by UWI, click on the UWI heading and the wells will be sorted by UWI in ascending order. Clicking on the UWI again will sort the wells in descending order. This can be done for any column by clicking on the heading.

Clicking on the Sort toolbar button gives you the option to sort by multiple columns at once.



To Print, click the Print toolbar button or choose Print from the File menu.
